ReXgen 2 IMU Series
ReXgen 2 IMU Series
Couldn't load pickup availability
2x CAN (CAN FD)/ LIN logger/ Interface
Includes: Dead reckoning GNSS and 6D IMU, x2 Digital and x2 Analog inputs, IP 65 enclosure.
ReXgen 2 IMU: Harness Reliable Data Wherever You Roam!
The ReXgen 2 IMU is an upgraded version of the ReXgen 2, with added GNSS, gyro, and accelerometer support.
It offers the same durability and cost-effectiveness as its predecessor but is geared towards applications that require a CAN 2.0, CAN FD, or LIN flight data recorder, with vibration and position tracking even in GPS-signal-absent environments. The ReXgen 2 IMU is ideal for recording data for shared cars, motorcycles, or off-road vehicles.
It doesn't need to be connected to a computer to record data and comes with configuration software that supports silent mode, CAN monitoring, message filtering, SAE-J1939 logging, and event triggering.
The ReXgen 2 features to manage sensitive data:
■ Mountable enclosure
■ Data is stored securely on a non-removable embedded EMMC
■ Data encryption
■ Real-time clock to timestamp data for analysis
ReXgen 2 with the power of GNSS Positioning System and a 6D IMU
Rexgen 2 IMU comes with an integrated, highly-advanced and accurate GNSS module (using U-Blox Neo M8 Series)
One interface:
■ Evaluate signals from the GNSS (QZSS, GLONASS, BeiDou and Galileo) satellites
■ With a position accuracy of 2.0m CEP
■ Log GNSS data at sampling rates of up to 18HZ
■ Send your GNSS data to eMMC storage or CAN with support for up to 13 different parameters such as position input, speed, altitude etc
And thats not all:
■ Acceleration output of ±2/±4/±8/±16 g at full scale at max sampling rate-1KHz
■ Gyroscope’s angular output data rate- up to 1KHz with ±125/±250/±500/±1000/±2000 dps at full scale
Easy configuration :
Connect the ‘ReXgen 2 IMU’ to your computer and configure the device to work with your vehicle using the included configuration tool ReXdesk, or configure it using your custom applications with our open API.

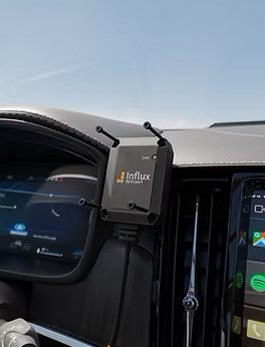

Construction & Design:
Robust, stainless steel mounting screws withstand the toughest conditions. Secure the ReXgen and get ready to log /view live data.

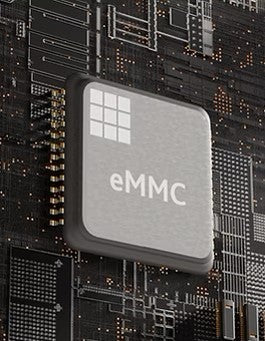

Internal Storage to keep your data intact:
Inbuilt eMMC storage, that can be processed by custom-made algorithms, providing important alerts and statistics.
One interface:
■ Connect the 'ReXgen 2 IMU' to a computer and configure the device to work with your vehicle; it supports CAN, J1939 and error logging
■ Create easily customised programs for your communication needs with the Pass-Thru (J2534) and connect by using USB 2.0 interface
■ Compatible with third-party tools like SavvyCAN
Power Consumption
Power consumption is an important aspect when battery life is considered in electric or internal combustion vehicle. Will the data logger drain the battery when the vehicle is powered down? Or can you leave it on the vehicle for months with confidence?
All our data loggers support Wake On CAN
The ReXgen2 supports Wake on Movement.
With advance features such as Power down mode and Sleep Mode the power consumption is the equivalent to 1mA per hour.
Key Features:
- 2x CAN 2.0 / CAN FD Buses
- 1x LIN Bus
- 2x Digital Inputs
- 2x Analog Inputs
- J1939 Support
- Trigger Functions
- Encryption Support
- Supports J2534
- Live CAN Bus Monitoring
- CAN Error Logging
- eMMC Storage(8/16GB)
- Sleep & Wake On CAN
- Free Configuration Software ReXdesk
- Open API
- Real-Time Clock
- USB 2.0 Interface
- IP65
- 3D Accelerometer & Gyroscope
- GNSS Positioning System
