ReXdesk

ReXdesk

$0.00
$0.00
Sale Sold out

Easy-to-use configuration and data handling software for ReXgen

User Guide

Download Now

Easy-to-use configuration and data handling software for ReXgen.

ReXdesk is our freely distributable software configuration and general-purpose software tool to work with ReXgen. It is designed to make CAN bus data logging easy.

ReXdesk supports multiple DBC files enabling configurations that includes filters and log on parameter values.

This software is designed to support ReXgen through its entire lifetime, with tools for:

■ First-time ReXgen set-up

■ Preparation and configuration for data logging

■ Data retrieval and conversion, with live data viewing




Key Features:

​■ Supports industry-standard DBC files

■ Supports CAN and CAN FD (both ISO and non-ISO)

■ Supports Lin

■ Supports standard and extended messages

■ Triggers, on parameter value or CAN Identifier

■ J1939 Identifier formatter and DM1

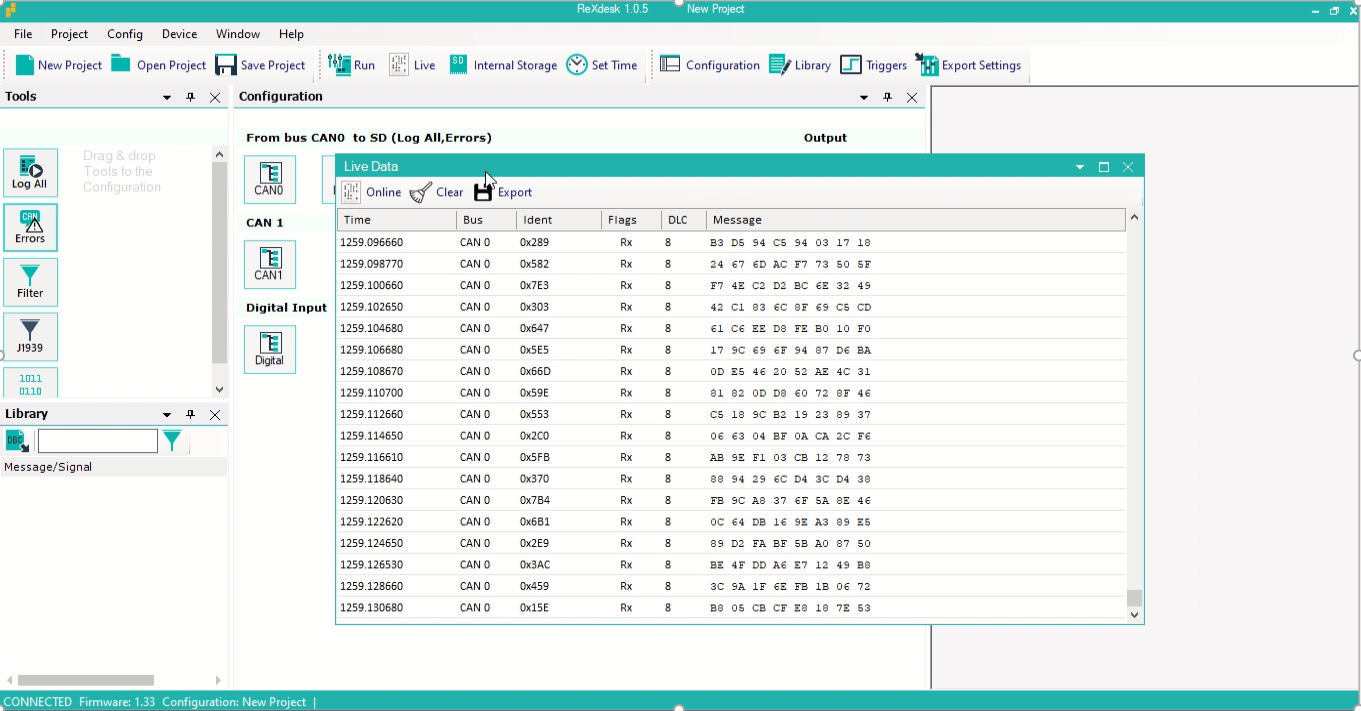

■ CAN error logging and Live CAN trace viewer

■ Fast data retrieval and export to other format files

■ Software Operating System: Windows

■ Modern, easy-to-use display with drag & drop interface



Sowftware Tools

ReXdesk has been engineered to support all aspects of ReXgen's powerful system.


First-time set-up:

■ Reflash ReXgen firmware

■ Set device date and time

■ Format internal storage

​Data logging configuration:

■ Numerous configuration tools for CAN and CAN FD, including Log All, CAN Errors, Filters, J1939 and Digital Inputs

■ Set up user-defined triggers

■ Enable/disable live data

​Data retrieval and conversion:

■ Copy, view and merge RAW CAN/CAN FD data from the ReXgen

■ One-click data export using a DBC file

■ Export formats include ASAM MDF4 (.mf4), MATLAB (.mat), CSV, ASCII  (.asc) and BLF (.blf)
