Rebel Multi-Connect Cable (5 Lead)

High quality, efficient accessories for Influx hardware.

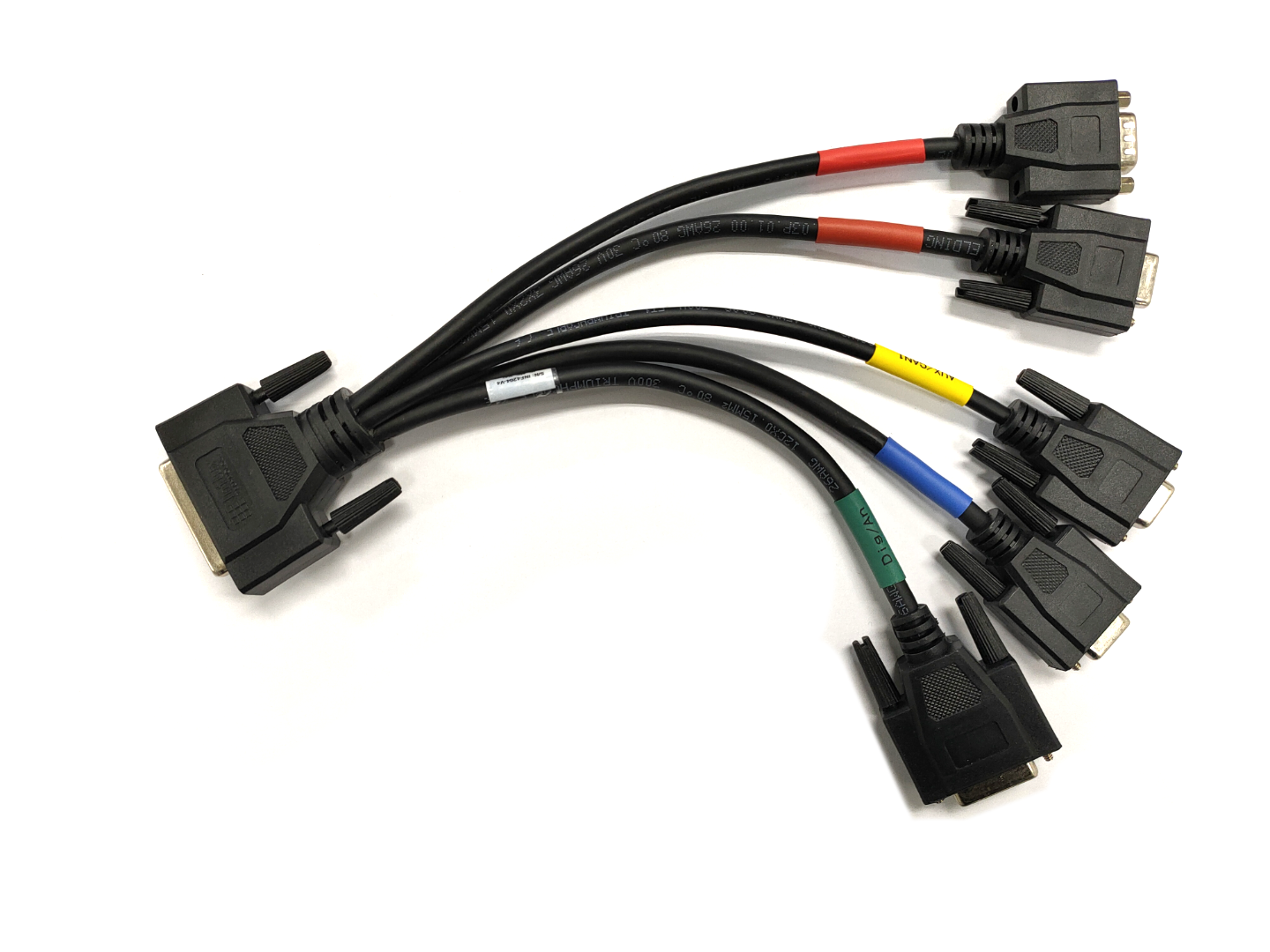

This 230 mm breakout cable is supplied with each Rebel CT data logger making it suitable to connect devices that are compliant with the standard CIA 9 PIN D-Sub pinout directly to the our data loggers.

The cable has one 25 Way D-Sub connector, which connects directly to the Rebel CT data logger and four 9 Way D-Sub connectors to connect up to the separate CAN buses as described here:

•POWER/CAN0 enables power and a CAN bus to be connected to the Rebel data logger. Type - 9 Way D-Sub (Plug)

•AUX/CAN 1 enables a CAN bus to be connected to the Rebel data logger and can be used to supply auxiliary power from the Rebel data loggers to other devices. Type - 9 Way D-Sub (Socket)

•CAN 2 Type - 9 Way D-Sub (Socket)

•CAN 3 Type - 9 Way D-Sub (Socket)

Additionally a 15 Way D-Sub (Socket) connector enables easy connection to the data logger analog and digital pins.

Technical Specs:

Cable Length：230mm

Connector A：25-pin D-sub (DB25) socket, compatible with Rebel CT and Rebel LT data loggers

Connector B：9-pin D-sub (DB9) plug/nuts, pins compatible with CiA 303-1 (CAN 0 and Power)

Connector C：9-pin D-sub (DB9) socket, pins compatible with CiA 303-1 (CAN 1)

Connector D：9-pin D-sub (DB9) socket, pins compatible with CiA 303-1 (CAN 2)

Connector E：9-pin D-sub (DB9) socket, pins compatible with CiA 303-1 (CAN 3)

Connector F：15-pin D-sub (DB15) socket, digital and analog inputs

Operating Temperature：-20 degC to +80 degC

Colour：Black
