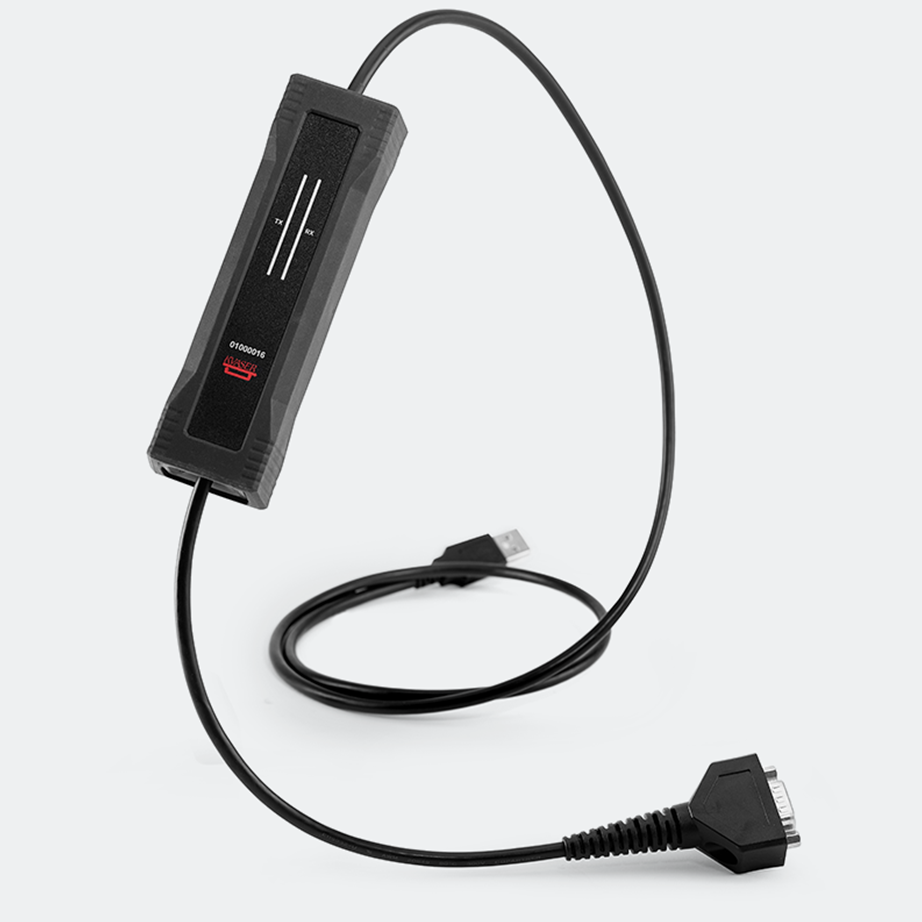

Kvaser U100

Kvaser U100

$0.00
$0.00
Sale Sold out

Robust, single-channel CAN/CAN FD to USB interface.

The Kvaser U100 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.

Key Features:

■Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).

■Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.

■Powered through the USB connector.

■Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.

■Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.

■IP67 rated.

■DB-9 connector (other connectors available soon).

■Intelligent LED UI.

■Reinforced galvanic isolation, design validated with 5000 VAC rms applied for 60 seconds.

■Industrial grade temperature range, −40 °C to +85 °C.

■20000 msg/s, each timestamped with a resolution of 100 μs.

■Support for SocketCAN.

■Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.

■Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.

View full details
