Function

Data logger configuration tool with integrated data analysis

DiaLog is an advanced Rebel Data Logger configuration tool with all the features you require to setup the Rebel family of data loggers.

Acquire recorded data for analysis or export through the modern interface with built-in support for industry-standard files, integrated graphical data analysis and included batch processing for handling very large amounts of data files.

 With well over 4000 registered users worldwide DiaLog is a popular tool within the industry.



Data logger configuration with integrated data analysis

DiaLog is an advanced Rebel Data Logger configuration tool with all the features you require to setup the Rebel family of data loggers.

Acquire recorded data for analysis or export through the modern interface with built-in support for industry-standard files, integrated graphical data analysis and included batch processing for handling very large amounts of data files.



With well over 4000 registered users worldwide DiaLog is a popular tool within the industry.




Key Features:

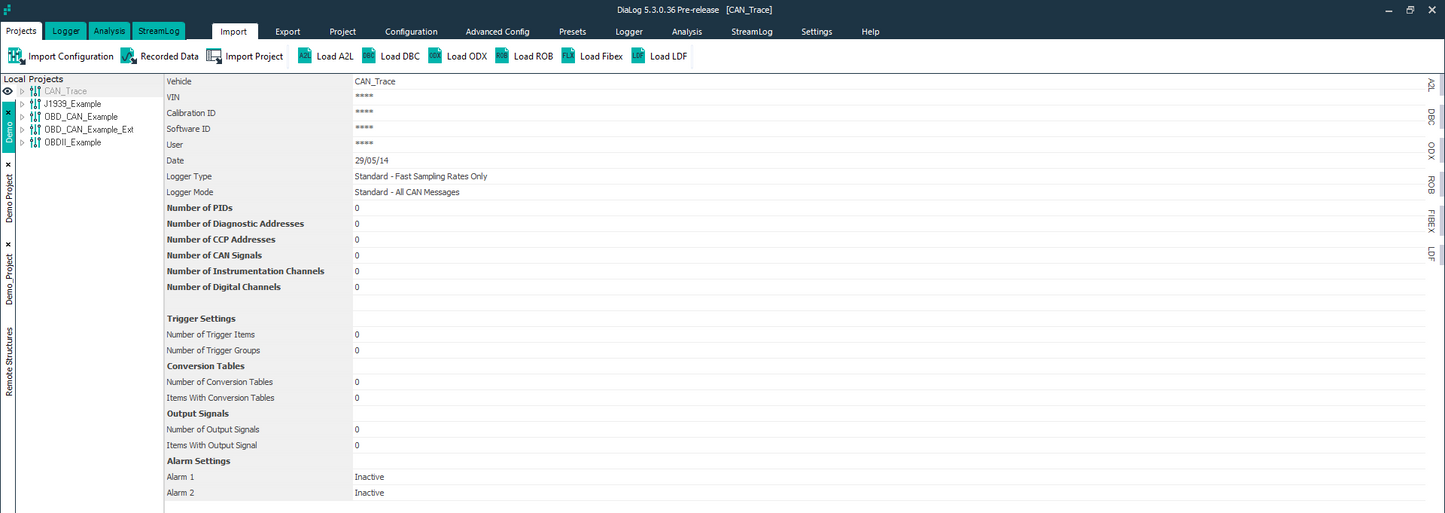

Our intuitive editor allows you to easily configure the Rebel data loggers.



■ Build and exchange Rebel data logger configuration files using industry standards such as DBC, A2L and ODX

■ Connect and reconfigure Rebel data loggers via USB

■ Monitor live data whilst data logging is active

■ Upload and analyse data recording files

■ Supports in field firmware upgrade

■ Batch processing to handle large amounts of recorded data

■ Supports direct connection to remote and local StreamLog servers

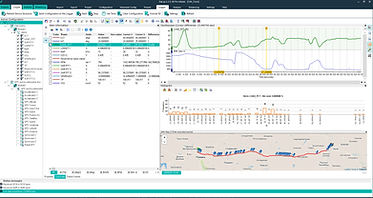

Data Analysis

DiaLog Plus and DiaLog Standard include a professional data analysis visualization tool which allows you to visualize and analyse your data quickly.

■ Twin axis cursors

■ User-defined templates

■ Post calculated channels

■ Edit notes

■ Zoom feature

■ Show individual sample points

■ Histograms

■ XY plotting

■ Statistical data, such as min/max and average



Batch Processing

Help to manage multiple files from multiple vehicles over several weeks, months of data.

DiaLog Plus includes the batch processing server tool that enables you to merge and convert several days of recorded data files in a single process, saving hours of work!

 DiaLog includes many features that are essential for engineers in the automotive industry. For example, the integrated diagnostic ODX database with standard OBD data that allows you to configure the Rebel data loggers to record essential diagnostic data on most modern vehicles.

■ Supports ISO14229, ISO14230, ISO15765-1 and ISO1565-2

■ Engineering CCP and xCP protocols. (With Seed and Key)

■ J1939 including DM1 messages

■ OBD Diagnostic Fault Codes

■ Advanced UDS functions such as Fast Data Acquisitions

​

Compatible with the industry standards

DiaLog supports standard data description file formats, making it easy to build complex configurations.

Data description files:

■ ASAM *.A2L – for direct memory read operations

■ *.DBC for CAN and CAN FD

■ *.LDF for LIN

■ ODX/MDX/GDX for UDS diagnostic databases

■ Fibex format for FlexRay channels

Data analysis files:

■ MDF (*.DAT)

■ ASAM MDF4 (*.MF4)

■ Matlab™ *.MAT

■ Ncode®

■ National Instruments® TDM format

■ CSV for data analysis with Excel

■ Vector® BLF
