Auxilary Power Cable

High quality, efficient accessories for Influx hardware.

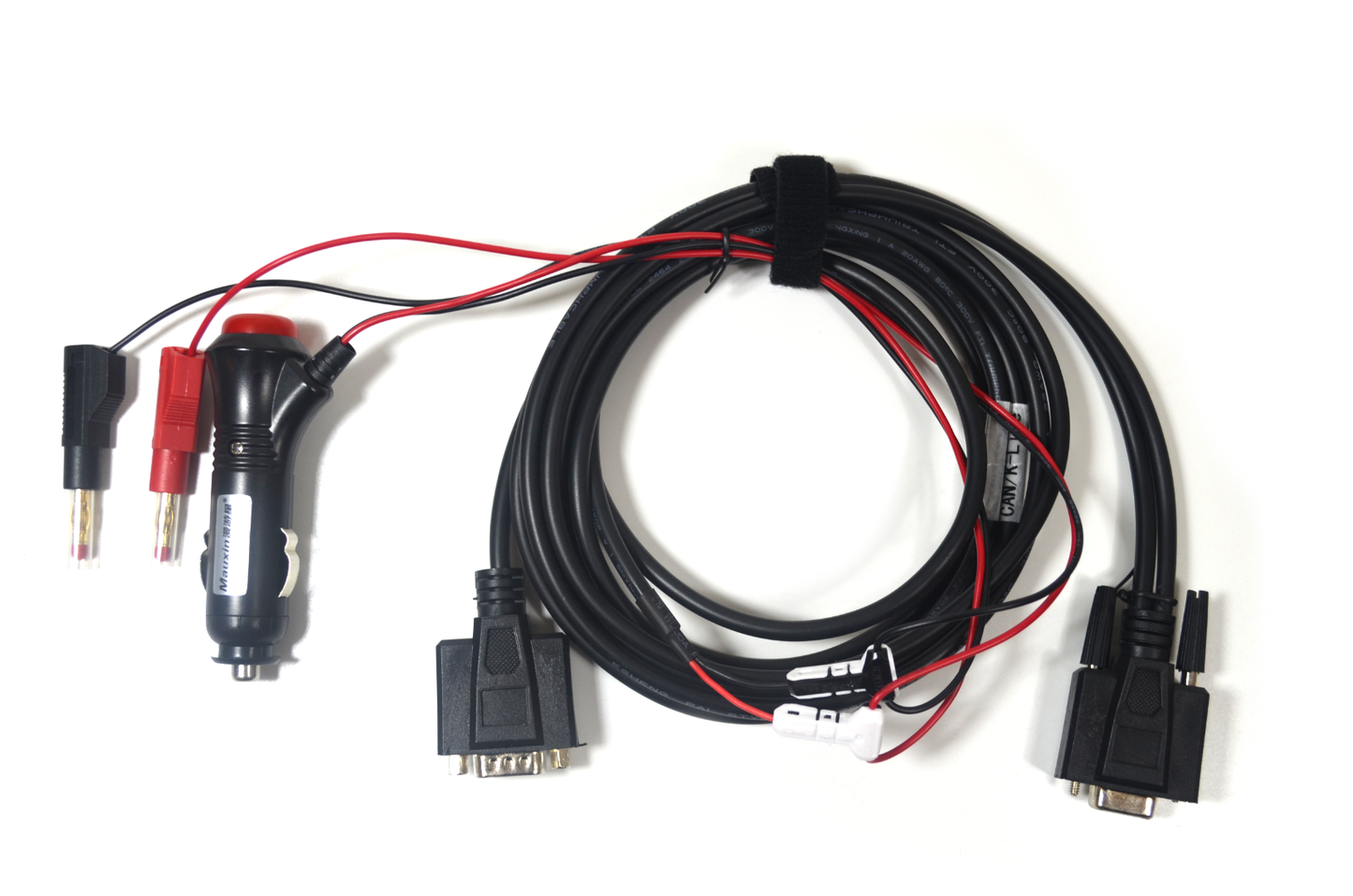

This cable is ideal if you require power to a K-Series device or Rebel data logger without the usual access to the OBD port. Simply use either the vehicle auxiliary power outlet or banana plugs (battery) for the power supply.

Connector A, is a 9 Way D-Sub (Socket) connected to power from either a vehicle auxiliary power outlet (cigar lighter) OR banana plugs and the CAN bus (PIN 2 &7).

Connector B, is a 9 Way D-Sub (Plug) connected to the CAN bus (PIN 2 & 7).

Technical Specs:

Cable Length：230mm

Cable Thickness：26 AWG 0.4 mm

Connector A：9-pin D-sub (DB9) plug [nuts], pins compatible with CiA 303-1 (CAN and Power)

Connector B：9-pin D-sub (DB9) socket [screw], pins compatible with CiA 303-1 (CAN only)

Connector C：[AUX Socket] Power with LED

Connector D：[Banana +] Power (+)

Connector E：[Banana -] Power (-)

Connector F：9-pin D-sub (DB9) plug, FleXray channel B

Operating Temperature：-20 degC to +80 degC

Weight：219 g

Colour：Black
