180 degree OBD TYPE-B Cable to Rebel Logger Adapter Cable

High quality, efficient accessories for Influx hardware.

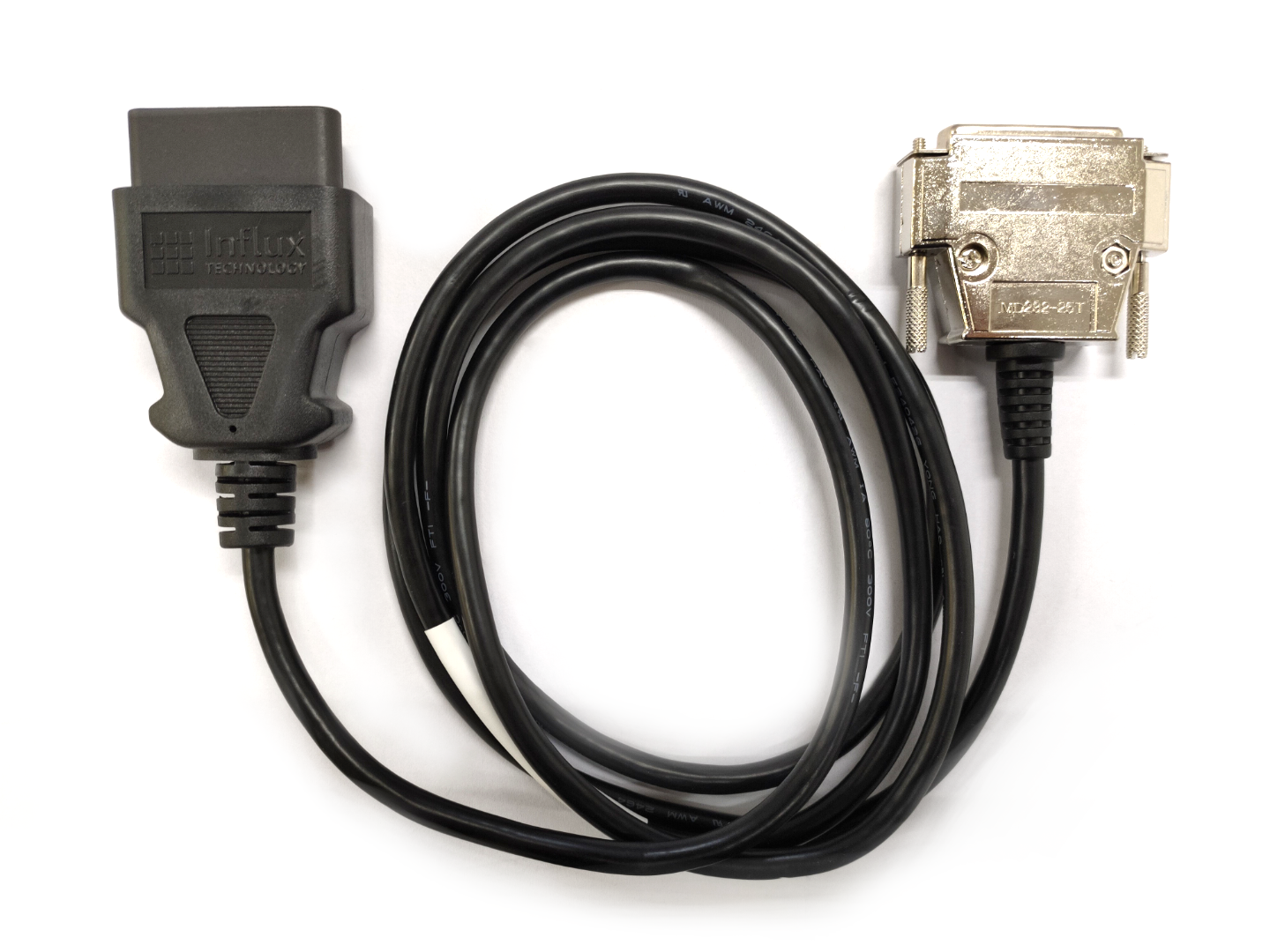

This 1.7 meter cable with 180 degree OBD2 Type B connector to 25 Way D-Sub connector (female screw) enables you to connect Rebel LT and Rebel CT data loggers directly to the vehicle OBD port.

Using this cable, the Rebel data logger is directly connected to the vehicle diagnostic CAN bus and also the vehicle permanent battery supply. (Please see the pin outs for more details)

This cable is only recommended for use with the Rebel LT and Rebel CT data loggers.

Note that Type B can connect to type A port

Technical Specs:

.Cable Length: 1700 mm

Cable Thickness: 22 AWG TBC

Connector A: 25-pin D-sub (DB25 socket)

Connector B: 16-pin OBD2

Operating Temperature: -20 degC to +80 degC

Colour: Black
